    Link Engineering Company

    Pre-Owned & Refurbished products





    Link Engineering Company is offering an array of machines available in as-is condition or refurbished (like-new) condition.

    Depending upon your testing needs, refurbishment can include modified components and the addition of optional equipment to allow for any number of applications and can be on-site within a short time frame. The test machine will be checked for proper operation and employ our ProLINK software package for control, data acquisition, analysis, and reporting, and will feature a full one-year warranty on all refurbished components.

    Please note products are on a limited inventory and first-come-first-serve basis. We invite you to contact us today if you are interested in any of the below equipment, as would be pleased to provide a quote with detailed capabilities, timing, and performance specifications.

    Available Equipment

    Brake & Friction

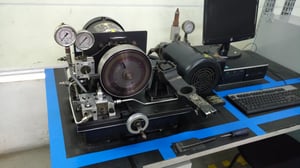

    Friction Assessment and Screening Test (FAST) Machine (Pre-Owned)

    IMG_20190318_112621295

    Machine Capabilities:

    • Pump Pressure Sustained (11Bar)
    • Claiming Pressure Limit 700 N
    • Maximum Friction (Force 7 N)
    • Normal Rubbing Speed (7m/s)
    • Motor (.76 kW)
    DOWNLOAD BROCHURE

    Chassis

    NVH Chassis Dynamometer (Pre-Owned)

    Machine Capabilities:

    • Single-Axle Dyno
    • 72" Dual Roll
    • 300 HP Continuous Rating
    • 125 MPH Speed Rating
    • Full Powertrain Motoring
    • 10,000lb GVW
    • Originally Designed for: 125 Hz Cut-Off Frequency & NC30 Noise Rating
    NVH Chassis Dynamometer (refurbished)

    4-Roll NVH Chassis Dynamometer (Pre-Owned)

    Machine Capabilities:

    • Dual-Axle Dyno
    • 72" Roll, 22" Roll Width
    • 300 HP Continuous Rating, each axle
    • 125 MPH Speed Rating
    • Full Powertrain Motoring
    • 6,000lb Max Load, each axle
    • In-Line Torque Transducer
    4-Roll NVH Chassis Dynamometer (refurbished)
    DOWNLOAD BROCHURE
    DOWNLOAD BROCHURE

    Clutch

    SAE No.2 Test Stand (Refurbished)

    Machine Capabilities:

    • 50 HP Main Motor
    • Max RPM: CW 7500
    • Max Torque: 1000 N·m
    • Max Inertia: 1.25 kg·m²
    • Max Apply Force: 40 kN
    • Max Usable Diameter: 290 mm
    • Static Breakaway
    SAE2_1
    DOWNLOAD BROCHURE

    SAE No.2 Test Stand (Refurbished)

    Machine Capabilities:

    • 50 HP Main Motor
    • Max RPM: CW 10,000
    • Max Torque: 1000 N·m
    • Max Inertia: 1.25 kg·m²
    • Max Apply Force: 13.6 kN
    • Max Usable Diameter: 190 mm
    • Static Breakaway
    SAE2_2
    DOWNLOAD BROCHURE

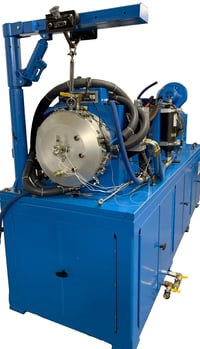

    Clutch Durability Test Machine (Pre-Owned)

    Machine Capabilities:

    • Motor Size: 300 HP motor
    • Motor Speed: 0 - 2,000 RPM
    • Motor Torque: 2,425 N-m
    • Max Test Specimen: Ø11.4 x 2.1 (Ø290 x 53)
    • Piston Apply Force: 130 psi (900 kPa) 0 - 8,992 lbf (0 - 40,000 N), apply stroke 5.1 mm
    • Stick slip detection feature
    • Heating Capability: 350°F (175°C)
    • Oil Flow: .056 – 1.05 gpm (200 - 4,000 ml/m)
    • Inline torque measurement: HBM torque hub model T10F
    Clutch Durability Test Machine (refurbished)-1
    DOWNLOAD BROCHURE

    Truck

    Truck Brake Inertia Dynamometer (Refurbished)

    Machine Capabilities:

    • Max Speed: 1,750 RPM
    • Max Inertia: 145.5 kg*m2
    • Motor Size: 100 HP
    • Motor Base Speed: 850 RPM
    • Max Brake Torque: 11,300 N-m
    Truck Brake Inertia Dynamometer 12.13

    Truck Brake Inertia Dynamometer (Refurbished)

    Machine Capabilities:

    • Max Speed: 1200 RPM
    • Max Inertia: 1,710.47 kg*m2
    • Motor Size: 150 HP
    • Motor Base Speed: 650 RPM
    • Max Brake Torque: 22,667.12 N-m
    Truck Brake Inertia Dynamometer (refurbished)-1

    Dual-Ended Truck Brake Inertia Dynamometer (Refurbished)

    Machine Capabilities:

    • Max Speed: 1200 RPM
    • Max Inertia: 3,345 kgm*2
    • Max Brake Torque: A-End 24000 Nm B-End 12000 Nm
    • Max Pressure 200 Bar
    • Static Torque Function
    DUAL ENDED Truck Brake Inertia Dynamometer (refurbished)
    DOWNLOAD BROCHURE
    DOWNLOAD BROCHURE
    DOWNLOAD BROCHURE

    If you are interested in learning more about a product, please contact a LINK team member using the form below.
